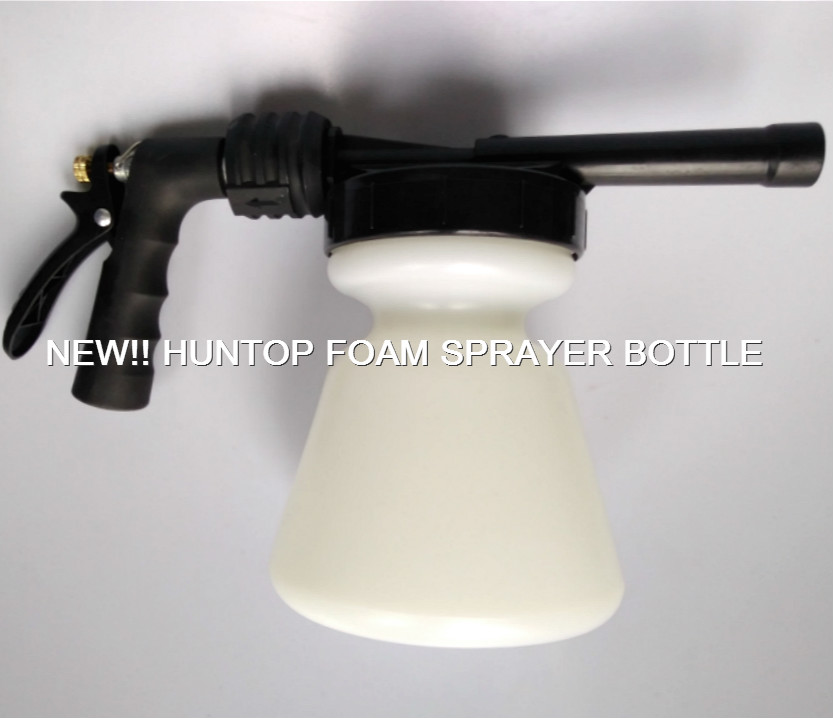

Automatic Dilution Foamer Spray Bottle Hose End Sprayer Bottle

Desc.: Automatic Dilution spray bottle Hydrofoamer 2.8L

The portable hose end sprayer bottle HydroFoamer offer easy automatic dilution with convenient control of where and how the solution is applied.

Max input pressure 85psi; Capacity: 2.8 liter; Mixing rate: 12:1 to 128:1

On and off functions are at your fingertips, trigger-controlled on the spray nozzle.

To rinse, the concentrate container is disconnected using an easy-tooperate quick coupler, designed to allow either a full width spray or powerful jet stream while rinsing.

This range of control helps personnel apply the solution where it’s wanted. Handles on larger containers increase the operator’s control over the application.

• Built with proven, reliable components; years of use in the field provide proof of durability
• Compact and easy to store
• Increased productivity of employees
• Reduced exposure to concentrates enhances safety
• Non-electric, no installation required; simply fill the concentrate container and connect the dispenser to a water source
• Maximum cleaning product performance

Perfect for

• Restaurants
• Food preparation areas
• Supermarkets
• Food processing plants Portable spraying and foaming of concentrates
• Animal care/research facilities
• Correctional facilities (shower areas)
• Health care and educational facilities
• Service stations
• Paving contractors’ facilities (asphalt release agents)

Operation:

1. Unscrew foamer lid assembly from container.

2. Select a metering tip using the chart below as a guideline and press the tip firmly into the hose barb on the bottom of the lid assembly. Install the suction tube on the hose barb.

3. Fill the container with concentrate. Screw foamer lid assembly securely onto container. CAUTION: Foamer lid assembly must be securely fastened to container to prevent accidental spilling of concentrate during use of foamer.

4. Insert foamer lid assembly into female quick connect on spray nozzle.

5. Connect a garden hose with 3/4" male garden hose thread to the base of the spray nozzle handle. Turn on the water supply to the hose. (Minimum 25 PSI water pressure is required to operate the foamer.)

6. Grasp the spray nozzle handle in one hand and the foamer container in the other. Squeeze the spray nozzle handle to begin foaming. Continuous operation can be achieved by usingthe handle lock provided on the spray nozzle. Rinse by disconnecting the spray nozzle from the foaming lid assembly. To remove the foamer from the spray nozzle, simply grasp the quick connect on the spray nozzle in one hand and the foamer assembly in the other. Pull in opposite directions. (The outside collar around the quick connect will slide toward the spray nozzle, disengaging the foamer barrel.)
