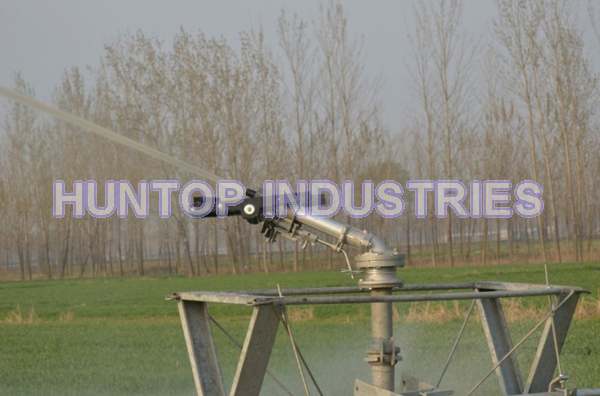

50pyc Heavy Duty Irrigation Farm Big Volume Rain Gun Sprinkler HT6171 China factory
for wholesales. Manufacturer supplier

Item No.: HT6171

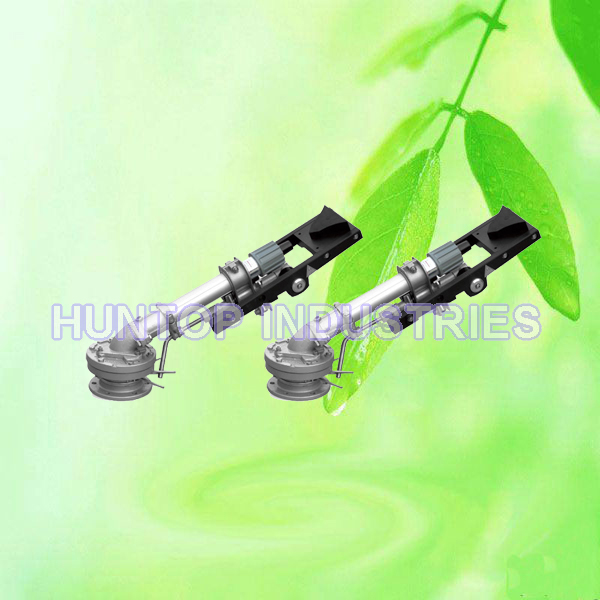

Desp.: 50PYC Heavy duty irrigation farm big volume rain gun sprinkler

The quanlity of sprinkler is in direct linkage to the performance of the machine.So it is the key to design a good quality sprinkler during the whole designing process. 50PYC sprinkler is a new product based on the consideration of the real need of the machine. It is able to match 7 types of nozzles, with the flow quantity up to 13-68/h.good spray ability and even distribution of water (the integrated uniformity coefficient of distribution water is no less than 85%, with the wind speed at 1.5m/h). With reliable performance,it boasts long service life, able to me requirement of current machines.

The new vertical impact drive sprinklers are different from past ones. The old types only have one arm, when they rotate counter-clockwise, another reversing arm is needed to change the direction as the bias current. They are intermittent counterforce sprinklers. The new type s have two impact arms, Two-way guide plate is mounted on the vertical impact arms. The current flowed into the plate in different directions will lead to the clockwise and counter-clockwise rotation as well as continuous sprinkling. Supported by special plane bearing, the rotation of the sprinklers is very flexible. The sheet within the current stabilizer tube are united with the outer arm and made by Aluminium alloy with stretch forming technology to ensure the smooth surface of the flow tunnel. The new sprinkler are smart in appearence. With materials being aluminium alloy and rigid plastics, they are light in weight and easy to be operated. Tests by special testing department show that they can meet the design requirements as the ideal products to choose.



Performance parameters of 50PYC vertical impact drive sprinkler



Features:

1. Sprinkler Jet: Sprinkler jet is in firm assembly with the current regulator and made by Aluminium Alloy with cold drawing technology. With impact structure, the inner surface is very smooth, reducing the loss of water.

2. Impact Arm: The working impact arm is united with the reversing arm. With the specially designed two-way current guider mounted at the front of the arms, the sprinkler may rotate clockwise and counter-clockwise.

3. Seal: The particular top and down friction pairs are used in the rotation of the sprinkler as the plane bearing to limit the axial movement and make the rotation more flexible.
